1. Manuals
2. Brands
3. AEG Manuals
4. Dryer
5. T8DBG48S
6. User manual

• Page 1

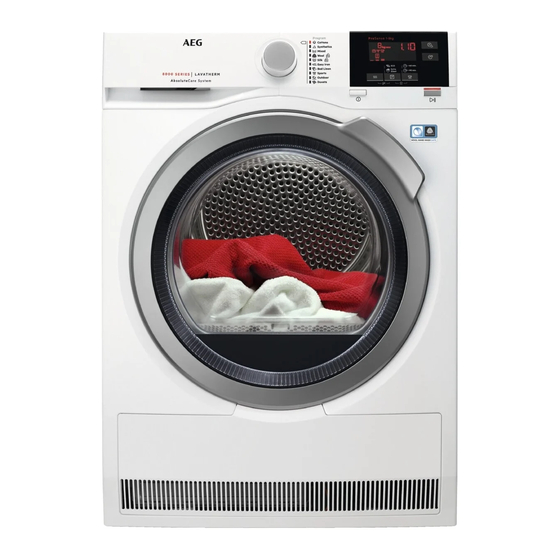

  T8DBG48S User Manual Tumble Dryer USER MANUAL…
• Page 2
  1369/2017……………………27 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
• Page 3
  ENGLISH SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
• Page 4
  1.2 General Safety Do not change the specification of this appliance. • If the tumble dryer is put on top of a washing • machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions supplied with the accessory.
• Page 5
  ENGLISH Items that have been soiled with substances such as • cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer. Items such as foam rubber (latex foam), shower caps, •…
• Page 6
  • Always use a correctly installed • Clean the appliance with a moist soft shockproof socket. cloth. Use only neutral detergents. Do • Do not use multi-plug adapters and not use abrasive products, abrasive extension cables. cleaning pads, solvents or metal •…
• Page 7
  ENGLISH 3. PRODUCT DESCRIPTION Water container Airflow slots Control panel Condenser lid Appliance door Condenser cover Filter Adjustable feet Rating plate For ease of loading laundry or ease of installation the door is reversible. (see separate leaflet).
• Page 8
  4. CONTROL PANEL Program dial Auto Off On/Off button with Display function Programs Start/Pause button Options 4.1 Display Symbol on the display Symbol description laundry maximum load delay start option on delay start selection (30min-20h) cycle time indication buzzer off…
• Page 9
  ENGLISH Symbol on the display Symbol description child lock on laundry dryness: iron dry, cupboard dry, cupboard dry +, extra dry drain the water container indicator: clean the filter indicator: check the condenser indicator: time dry option on time programme selection (10min-2h) drying phase indicator: crease guard phase…
• Page 10
  Program Load Properties / Fabric mark Woollen fabrics. Gentle drying for hand-washa- ble woollens. Remove items immediately when the programme is completed. 1 kg Wool The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool garments labelled as «hand…
• Page 11
  ENGLISH Program Load Properties / Fabric mark Sportswear, thin and light fabrics, 2 kg Sports microfiber, polyester. 1) The maximum weight refers to dry items. 2) For fabric mark meaning see chapter DAILY USE: Preparing the laundry. 3) The Cottons Eco programme is the “Standard cotton programme” according to Commission Regulation EU No.
• Page 12
  Energy consump- Program Spun at / residual humidity Drying time tion 1400 rpm / 50% 130 min 1,67 kWh cupboard dry 1000 rpm / 60% 154 min 1,99 kWh Cottons 8,0 kg 1400 rpm / 50% 97 min 1,21 kWh…
• Page 13
  ENGLISH minimum 10 min to maximum of 2 hours 2. Touch Delay Start button again (in 10 min steps). When this option is and again. maximum, load indicator disappears. Time of delay is on the display (e.g. Time Dry on Wool if the program has to start after 12 hours.) program…
• Page 14
  Working pump and transferring condensation to the tank. Working fans. 8. DAILY USE 8.1 Preparing the laundry • Always set the programme suitable for the type of laundry. Very often the clothes after • Do not put light and dark colours washing cycle are kneaded together.
• Page 15
  ENGLISH Fabric label Description Laundry is suitable for tumble drying at higher temperatures. Laundry is suitable for tumble drying at low temperatures only. Laundry is not suitable for tumble drying. 8.2 Loading the laundry 8.4 Auto Off function To decrease the energy consumption, CAUTION! the Auto Off function turns the appliance Ensure the laundry is not…
• Page 16
  8.8 Starting a program To activate or deactivate an option touch the relevant button or a two button To start the program: combination. its symbol appears on the display or the Touch the Start/Pause button. led above the corresponding button The appliance starts and the LED above lights up.
• Page 17
  ENGLISH 3. Remove the laundry. • Room temperature is too low or too 4. Close the appliance door. high. Optimal room temperature is Possible causes of unsatisfactory drying between 19°-24°C. results: • Inadequate default dryness level Adjustment of settings. See chapter default dryness level 9.
• Page 18
  • the Tank indicator: is off if the permanently deactivated symbol appears — the 10. CARE AND CLEANING 10.1 Cleaning the filter Filter At the end of each cycle the symbol comes on the display and you must clean the filter.
• Page 19
  ENGLISH 10.2 Emptying the water 1. Open the door. Pull the filter up. container Empty the condensed water container after each drying cycle. If the condensed water container is full, the programme stops automatically. The Tank symbol comes on the display and you must empty the water container.
• Page 20
  6. Close the condenser lid. 10.5 Cleaning the drum 7. Turn the lever until it clicks into position. WARNING! 8. Put the filter back. Disconnect the appliance before you clean it. 10.4 Cleaning the humidity sensor Use a standard neutral soap detergent to…
• Page 21
  ENGLISH 11. TROUBLESHOOTING Possible cause Remedy Problem The tumble dryer is not connected Connect it to the mains socket. to the mains supply. Check the fuse in the fuse box (do- mestic installation). The door is open. Close the door. The tumble dry- On/Off button was not Push the…
• Page 22
  Possible cause Remedy Problem It is not possible The option you tried to select is Turn the tumble dryer off and on. to select an op- not available for the selected pro- Change the programme or option tion. An acoustic gramme.
• Page 23
  ENGLISH • Inadequate default dryness level • Room temperature is too low or too Adjustment of settings. See chapter high. Optimal room temperature is default dryness level between 19°-24°C. 12. TECHNICAL DATA Height x Width x Depth 850 x 596 x 638 mm (maximal 663 mm) Max.
• Page 24
  Global-warming potential (GWP) 1430 1) With reference to EN 61121. 8,0 kg of cotton centrifuged at 1000 rpm. 2) With reference to EN 61121. 4,0 kg of cotton centrifuged at 1000 rpm. 3) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes.
• Page 25
  ENGLISH 13.3 Pedestal with drawer Accessory name: PDSTP10, E6WHPED2. Available from your authorised vendor. For increasing the height of the appliance in order to ease loading and unloading of laundry. The drawer can be used for laundry storage e.g. : towels, cleaning products etc.
• Page 26
  14.2 Cleaning the filter 2. Push the hook to open the filter. Filter At the end of each cycle the 3. Gather lint with hand from both symbol comes on the display and you internal parts of the filter. Throw the must clean the filter.
• Page 27
  1) The maximum weight refers to dry items. 15. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017 Product Information Sheet Trade Mark Model T8DBG48S, PNC916097882 Rated capacity in kg Air vented or condenser tumble dryer Condenser Energy efficiency class…
• Page 28
  Weighted programme time of the ‘standard cotton pro- gramme at full and partial load’ in minutes Programme time of the ‘standard cotton programme at full load’ in minutes Programme time of the ‘standard cotton programme at partial load’ in minutes…
• Page 32
  www.aeg.com/shop…
