NX3 Evo Flight Controller System Manual

VERY IMPORTANT!

Please release or turn off the emergency switch when the plane become level



flight and under control. Emergency mode just for emergency situations.



Please use good quality BEC or ESC as power supply. Do not use Ni-Mh and

dry cell batteries.



When use NX3evo in Delta wing or V-tail plane, please turn off mixers on your

transmitter, and set the DIP switch on NX3evo.



For the first flying, it’s better to keep a lower sensitivity (-20%~+20% gain,

10~14 o’clock is recommend) and then increase it gradually.

Check every axis gain direction befor flight.





When you triggle the emergency switch, The elevator will move up and then

move down slowly. If it is not, please reset this function refer step 4.8 radio

stick direction calibration.



Must keep the plane level and stable when power on the system.

When switching on the radio control system it is essential to keep the



transmitter aerial at least 15 cm away from the receiver aerials at all times.

Otherwise,NX3evo will read the wrong center position of receiver signal .

The Controller has to re-learn center position after installation,or replacing a



new radio system, or making a trimming(or Sub-Trim)change within the

transmitter, otherwise the servos may move to one side automatically.To do

this,just quickly flip the flight mode switch twice within 1 second!

1. Features:

NX3evo provides four levels of flight mode:



1. Beginner, 2.Practice, 3.Promotion, 4.Expert.



Four Model Types supported:

single aileron, dual ailerons , delta and vtail.



Two kinds of Gain Control Method supported:Master Gain from the radio,

Independent Axis Gain from the Variable resistor on the Controller board.



Emergency mode guarantee safety flight .



Automatic aileron levelling.

3D AVCS flight, Attitude locking.





Provide Y-wiring for aileron.

2. Specifications:



Voltage range: DC 4.5 – 6V



Response Frequency: 100Hz

Operating Temperature: 0-50°C





Size: 43x28x15mm



Weight: 11g

3. Packing List:



NX3evo Flight Controller Board

NX3evo Manual





Connector wires



Double-sided paste

Mini Screwdriver



4. Installation:

WARNING:

PLEASE

READ

CAREFULLY BEFORE YOU START TO INSTALL A NEW PLANE!

Step 1:Configure the plane without NX3evo.

Create a new model in your transmitter. Do not engage any mixer on your

transmitter.Assign two switchs for NX3evo.One is for AUX(flight mode change),two

or three steps. Another is for Emergency(Rebound Toggle Switch is better).Make

sure all servos moves smoothly.

Step 2: mount

NX3evo need to be

firmly mounted near

the gravity center of

the

plane

with

provided

MAT NX3 Evo Flight Controller System

THE

FOLLOWING

STEPS

double-tape . Please make sure the long side of NX3evo is in line with

the fuselage. And the logo side should face up. After mounting, please check again

whether the board is firmly attached to the aircraft.

Step 3: DIP configure

1.

If you are a beginner, please turn the switch (T) to the right.

2.

If you want yaw attitude locking, please turn the switch (Y) to the right.

3.

For delta-wing plane, please turn the switch (D) to the right.

4.

For v-tail plane, please turn the switch (V) to the right.

Step 4: Wiring

Connect NX3evo and the receiver using wires in the package according the following

figure.

Step 5: AUX Channel or Master Gain channel Setting

NX3evo use AUX channel to change flight mode.The

controll the Master Gain of NX3evo.Decrease the AUX travel will decrease all three

axises correction. NX3evo will be in

do not connect to the receiver.

‘T’ be right side

mode

Beginner

AUX

Signal

-100 ~ 0

Width

LED

forever

Status

on

Step 6:Individual Correction Gain and Correct Direction Configuration

Using the provided screwdriver to adjust the gain

pots on NX3evo board control the correctional gain

(sensitivity) and correct direction for the following

controls:

pitch (ELE), roll (AIL) and yaw (RUD)

axis. You’d better start with a lower sensitivity for

your first flight (-20%~+20% gain was recommend)

and then increase it gradually. The aircraft will

become vibrative if the gain is too large.

VERY

Before configure the Correct Direction, please switch to Practicing Level or

Promotion Level at first, power on the system, pick up the airplane and check it by

following the three steps below:

AILERON Quickly move the right wing upward around the roll axis, the right

aileron will flap up and the left flap down.

travel of AUX channel also

Beginner

Level or

Expert

‘T’ be left side

Practicin

Promotio

Expert

g

n

0 ~ 100

0 ~ 100

-100 ~ 0

Fast

Fast

forever

Flash

Flash

on

Level if AUX channel

Emergenc

y

Signal

With

100

Emergenc

Close

y Mode

-100

~

0

100

Slow

off

Flash

ELEVATOR Quickly move the tail upward around the pitch axis, the elevator will

flap up as shown.

RUDDER Quickly move the tail to the right around the yaw axis, the rudder will

turn to the right as shown.

Step 7: Emergency Mode (must connect the emergency cable) configuration

The emergency mode need an assigned switch in your transmitter (Rebound

Toggle Switch is better).Toggle

function(switich channel signal 100).When you release or turn off the emergency

switch(switich channel signal less than 100),NX3evo will return to the previous

flight mode.When Emergency Mode activeated, the plane will flying level and up

rapidly for about 3 seconds.If you do not release or turn off the emergency

switch ,the plane keep roll levelling and pitch climbbing flying attitude.

Step 8: Radio Stick Direction Calibration

When active emergency mode, the ELE will flap up and return original level slowly. If

it is not, you must calibrate the direction of your radio stick follow the steps below.

1.

Please refer the picture on the right: move the switch ‘D’ & ‘V’ on

the right side, and switch’T’&’Y’ on the left side.

2.

Power on the radio and NX3evo, wait patient until NX3evo LED

flashing slowly. Then move the two stick to the lower left corner

and hold this position until the LED turns off. That means the

calibration is done.

3.

Re-set the DIP refor to 4.3.

5.Dual Aileron Setting

NX3evo support single aileron signal and dual aileron signal.If the Aileron R IN

cable be attached to the receiver ,Dual Aileron function will active automatively.

NX3evo also support Y-cable function if the Aileron R IN cable not be connected to

the receiver.

NOTE: if Dual Aileron function activated, please don’t use the beginner mode

simultaneously.

6. Re-learn center position

The Controller has to re-learn center position after installation,or replacing a new

radio system, or making a trimming(or Sub-Trim)change within the transmitter,

otherwise the servos may move to one side automatically.To do this,just quickly flip

the flight mode switch twice within 1 second!

MAT NX3 Evo Flight Controller System

the

switch

to

activate

the

7. Flight mode details:

1.

Beginner mode

feature: Aileron auto-leavel . roll angle limit to ±75 degree.

When the aileron stick back to center position, the aileron will keep level

automatically.

The elevator will be control by youself, there is no auto-level function. But will

provide obvious assist,the pictch have attitude locking function.

Beginner mode is for very beginner player.Also can be used for short-range FPV.

2.

Practice mode

feature: attitude locking for roll,pitch,yaw.restriction on roll and pitch speed.

Practice mode do not have auto-level and angle limit function.

Practice mode is for practise flying.

If you want yaw attitude locking, please refer 4.3 DIP configure.

3.

Promotion mode

feature: attitude locking for roll,pitch,yaw.

Promotion mode is very likely from practice mode.It provide aititude locking

function.Compare to practice mode,promotion mode supply

sense of control .

If you want yaw attitude locking, please refer 4.3 DIP configure.

4.

Expert mode

feature: simple Gyro correction.The best control sense.

It supply a simple Gyro correction and anti-wind function.

5.

Emergency mode

feature: Roll auto-level,climb up.

You can triggle the emergency switch in beginner mode,practice mode,promotion

mode and expert mode to activeate emergency mode.In emergency mode,airecraft

emergency

will keep roll level and then climb up by a small degree.

more sensitive

MAT www.gdszmat.com

NX4-PRO техническое объяснение видео://v.youku.com/v_show/id_XNDY0OTU2NDM4NA==.html?spm=a2h0c.8166622.PhoneSokuUgc_1.dtitle

NX4-EVO техническое объяснение видео://v.youku.com/v_show/id_XNDY0OTU2NDg3Ng==.html?spm=a2h0c.8166622.PhoneSokuUgc_1.dtitle

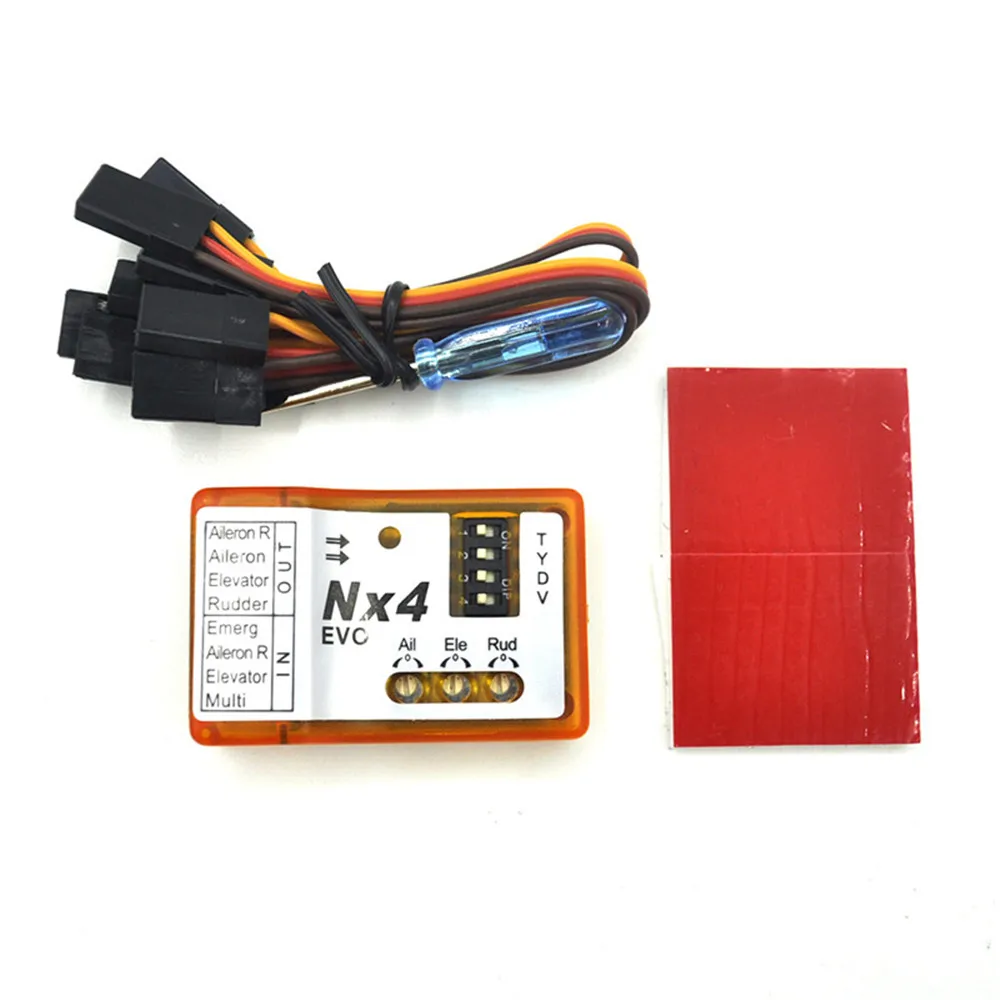

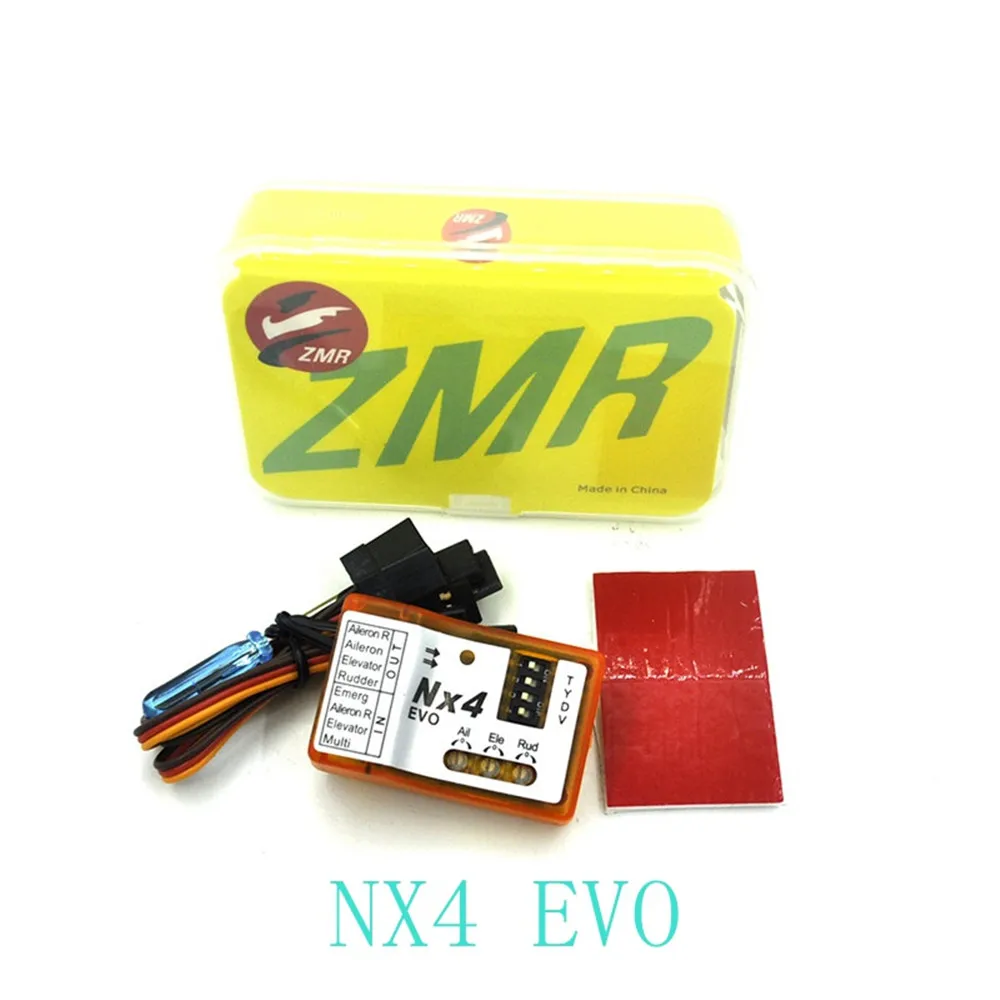

Контроллер полета NX4 EVO:

Напряжение Область применения: DC 4,5-6V

Частота отклика: 100 Гц

Рабочая температура: 0-50 °C

Размеры: 43x28x15 мм

Вес: 11 г

Особенности:

Обеспечивает четыре уровня режимов полета: 1-новичок, 2-тренировка, 3-средний, 4-эксперты.

Поддержка четырех типов моделей: уникальный aileron, двойной ailerons, треугольный и v-образный.

Поддерживаются два вида способа управления усилением: усиление Управления от радио, независимая ось-усиление от переменного резистора на плате контроллера управления.

Аварийный режим гарантирует безопасность полета.

Автоматическое выравнивание aileron.

3D AVCS полет, отношение блокировки.

Обеспечивает y-проводку для aileron.

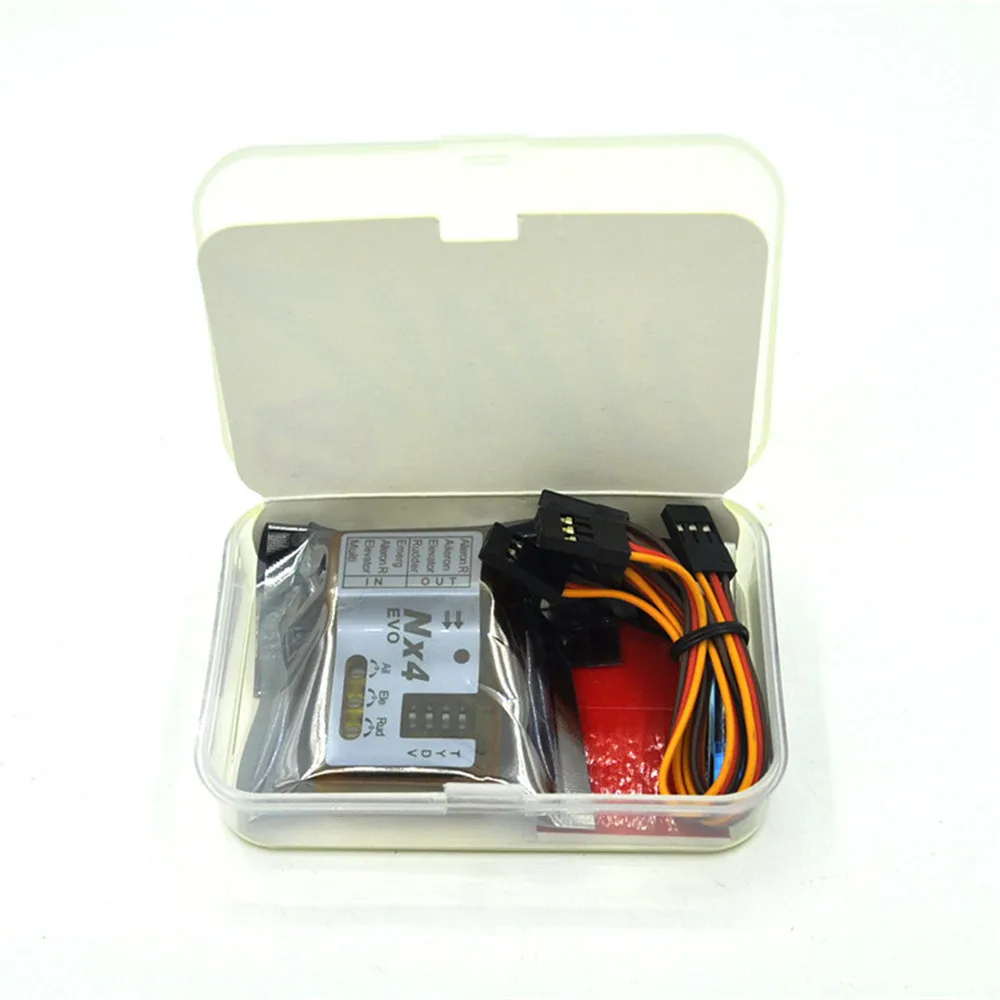

Упаковочный лист:

Плата управления полетом NX4 EVO

NX4 EVO руководство

Провода коннектора

Двухсторонняя паста

Мини-отвертка

————————————————————————————————————————————————-

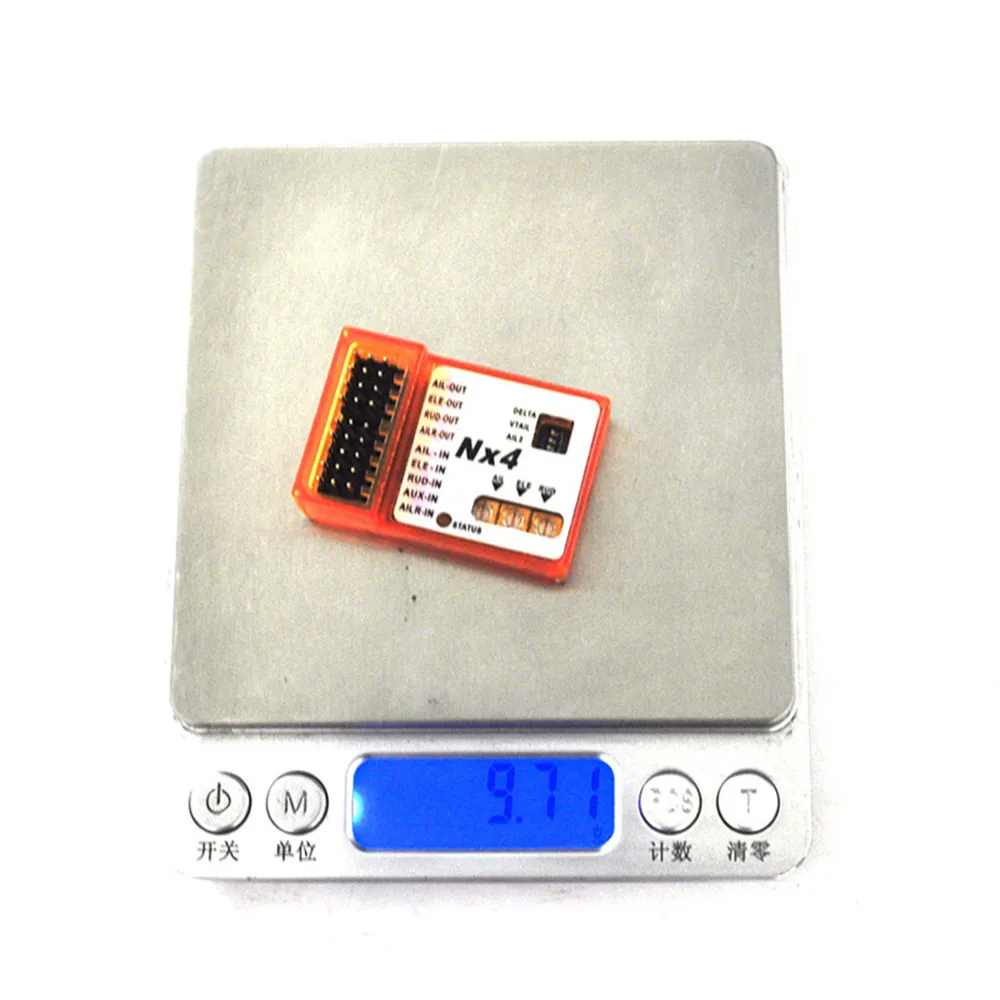

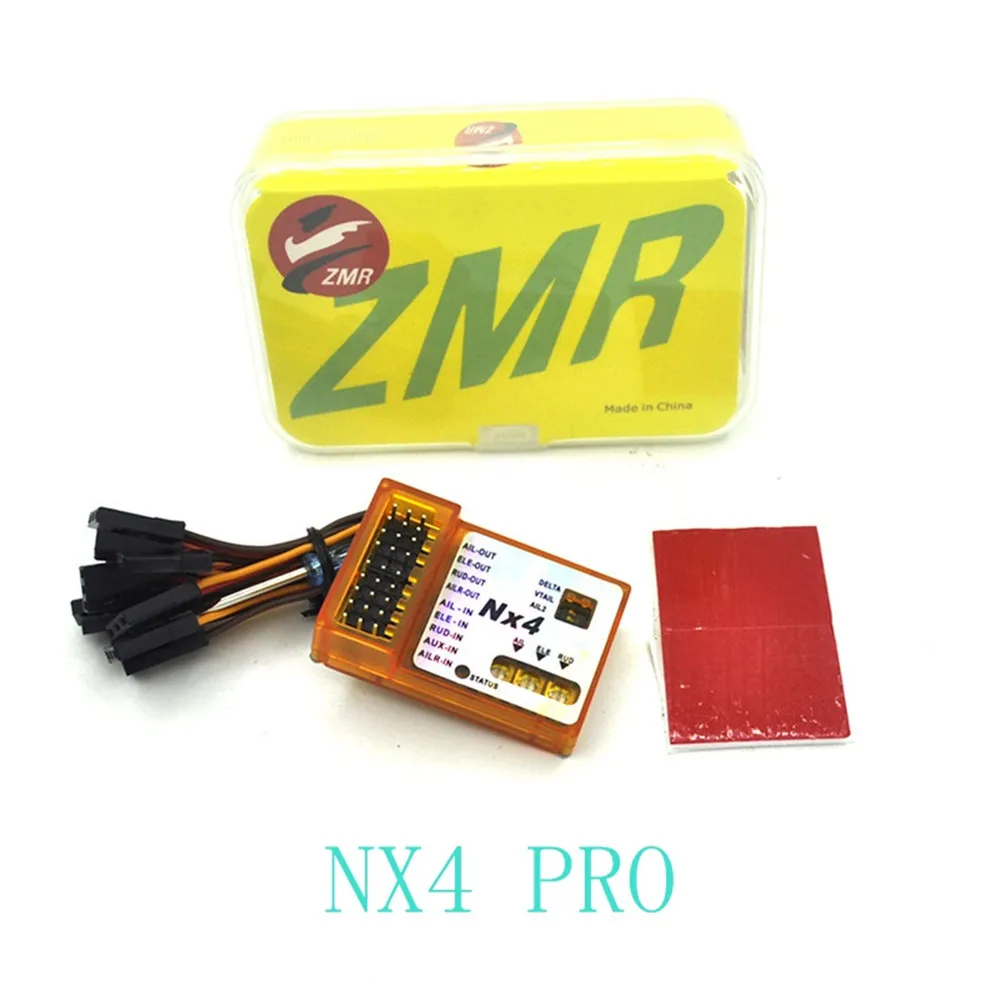

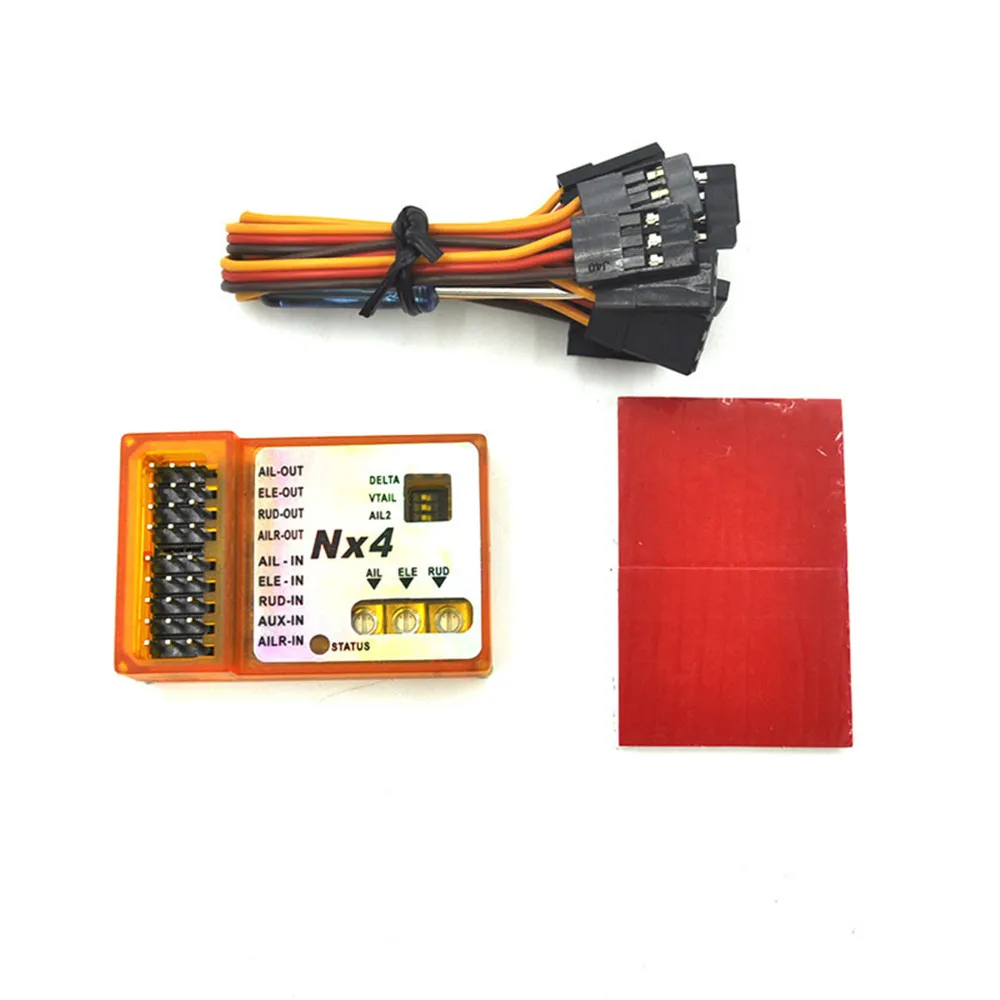

Контроллер полета NX4 PRO:

Напряжение: 5 — 6 в пост. Тока

Размеры: 40 мм x 25 мм

Вес: 6,5 г

Особенности:

Поддержка четырех типов моделей: уникальный aileron, двойной ailerons,flapperons,deita и V-tail.

Три режима полета:

А. Режим скорости, режим скорости для офсетной коррекции.

B. Режим ожидания, режим удержания для удержания позиции.

С. Режим Gyro-Off, transsmiter напрямую контролирует самолет.

Поддерживаются два вида способа управления усилением: усиление Управления от радио, независимая ось-усиление от переменного резистора на плате контроллера управления.

Используя Улучшенный подход, обеспечивающий более комфортное и более чувствительное чувство управления.

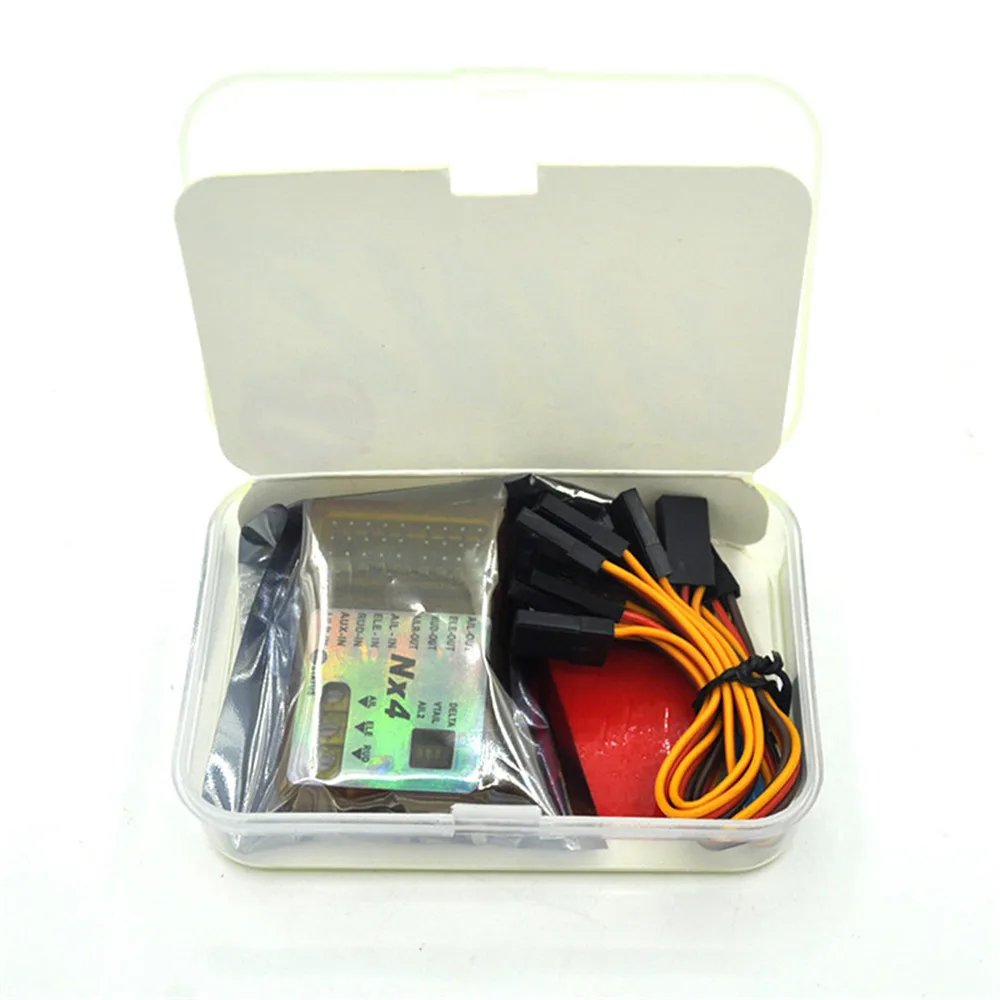

Упаковочный лист:

Плата контроллера полета NX4 PRO

NX4 PRO руководство по эксплуатации

Провода коннектора

Двухсторонняя паста

Мини-отвертка

————————————————————————————————————————————————-

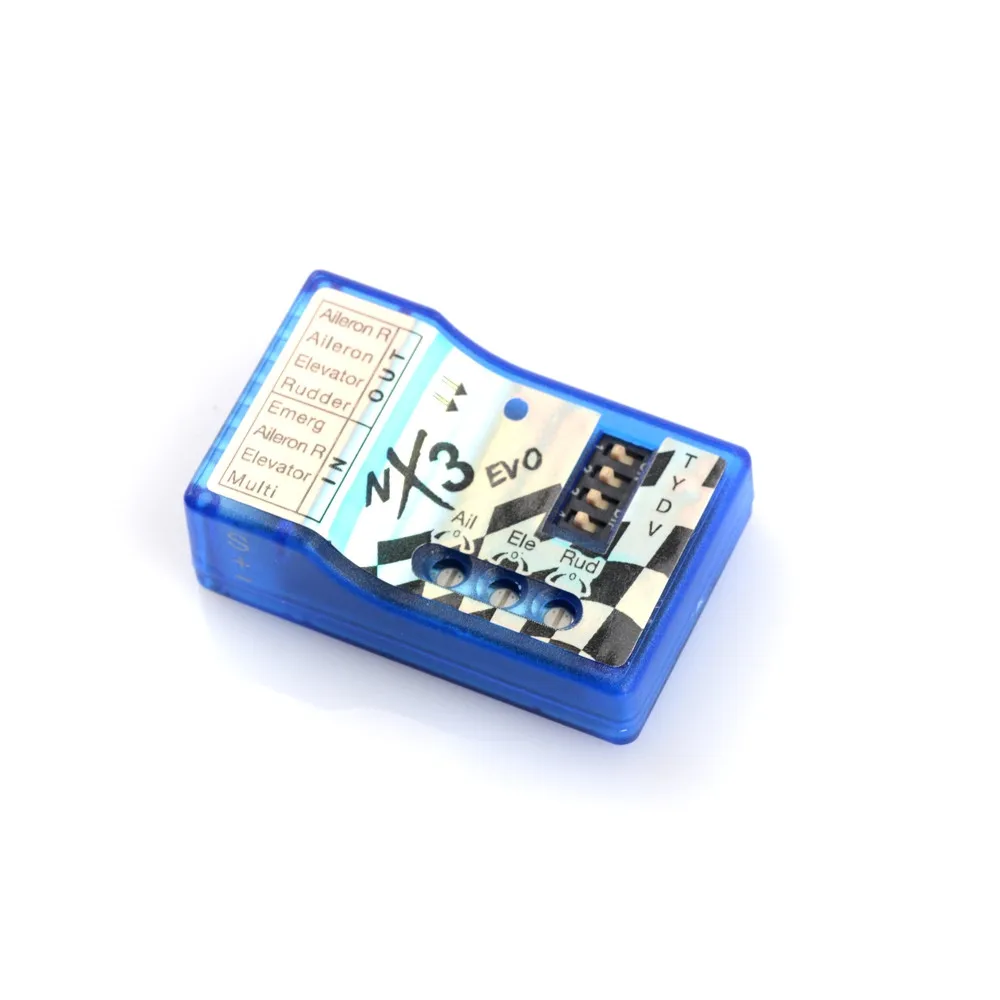

Контроллер полета NX3 EVO:

Напряжение Область применения: DC 4,5-6V

Частота отклика: 100 Гц

Рабочая температура: 0-50 °C

Размеры: 43x28x15 мм

Вес: 11 г

Особенности:

Обеспечивает четыре уровня режимов полета: 1-новичок, 2-тренировка, 3-средний, 4-эксперты.

Поддержка стандартного стационарного вертолета, v-образного хвоста, треугольного крыла

С использованием новейших высокопроизводительных шестиосный датчик MEMS

Независимая чувствительность оси регулировки потенциометра

Автоматическое переключение между обычными одними и двумя режимами полета

Смарт-уровень калибровки, дистанционное управление регулировкой коэффициента усиления во время полета

Автоматический баланс полета

Функция сохранения одной кнопкой

Отношение режим блокировки

Обеспечить Y-проводки для aileron

Посылка включает в себя:

1x Контроллер полета NX3 Evo

1x аксессуары

1x руководство

———————————————————————————————————————————————

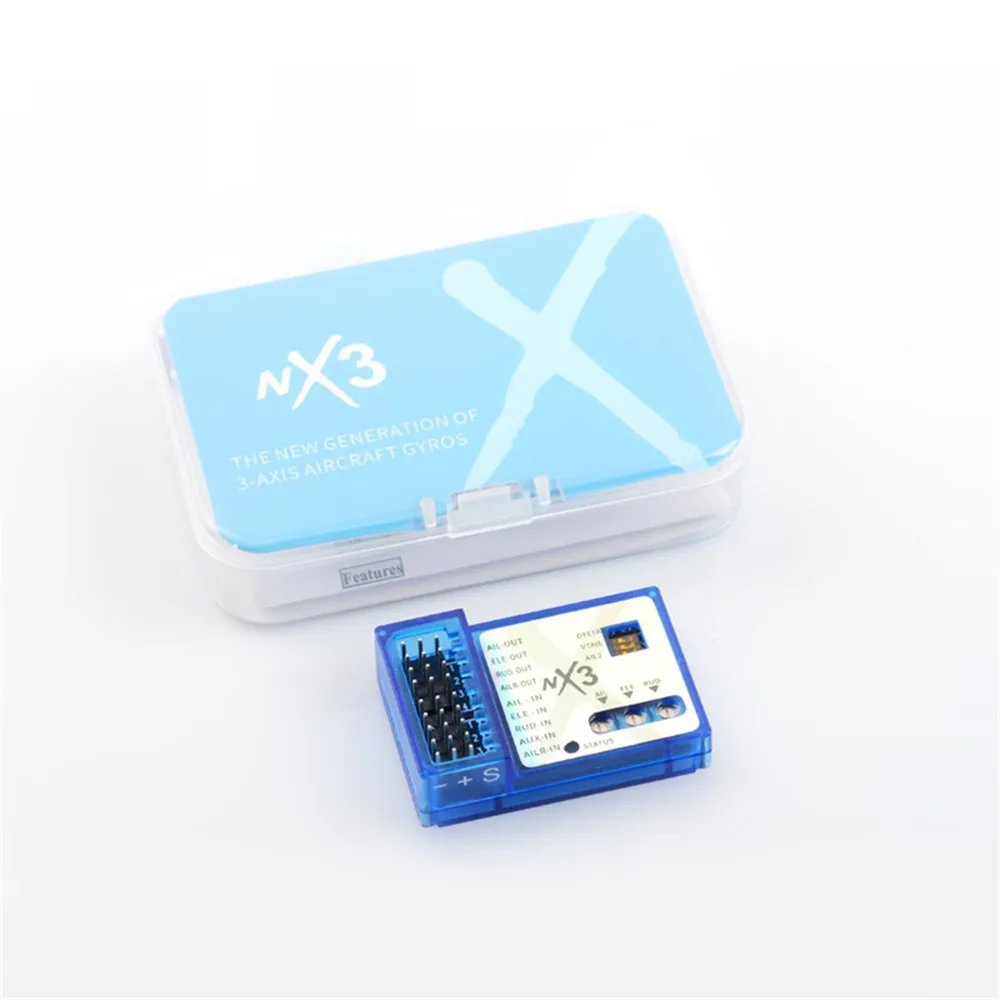

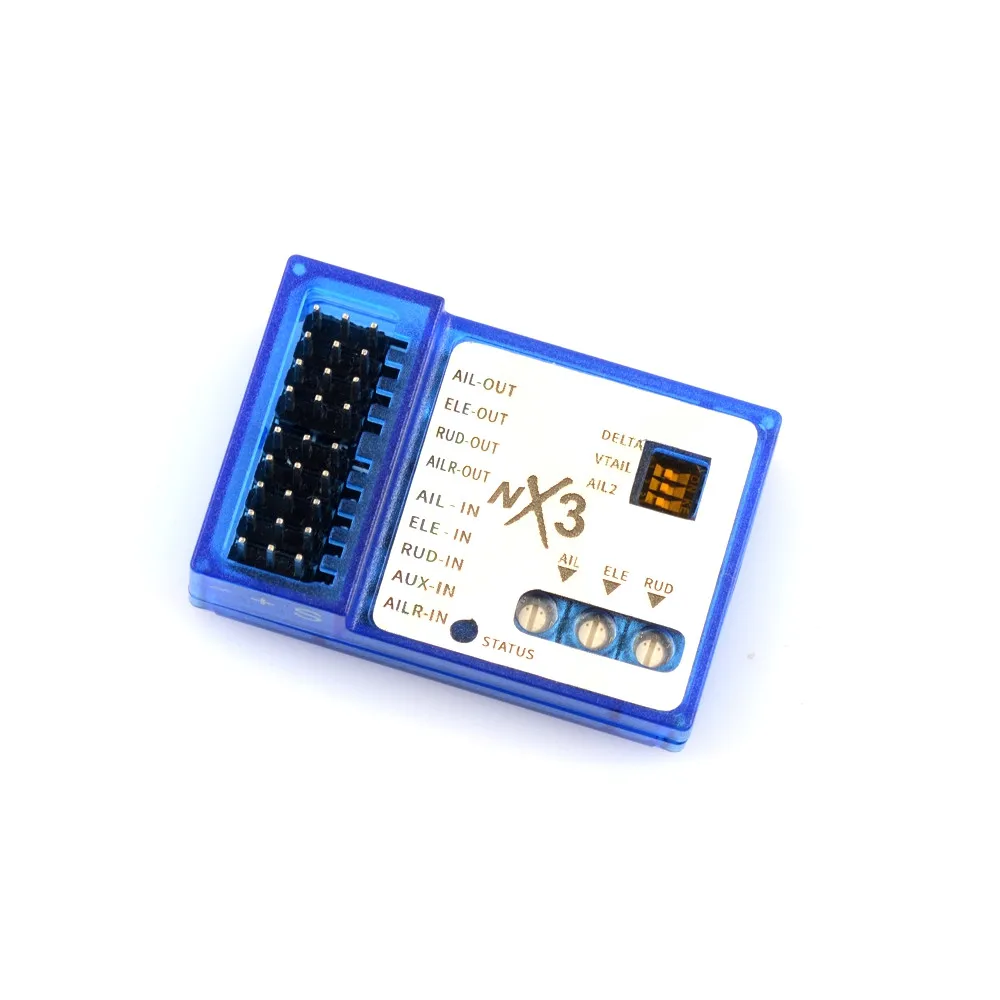

Контроллер полета NX3 PRO:

Диапазон напряжения: 5-6 В постоянного тока.

Размеры: 40 мм x 25 мм.

Вес: 6,5 г.

Особенности:

1. Поддерживаются четыре типа моделей: aileron, dual ailerons , flapperons, delta и vtail.

2. Три режима полета поддерживаются:

А. Режим скорости, режим скорости для офсетной коррекции.

B. Режим ожидания, режим удержания для удержания позиции

С. Режим выключения гироскопа, трансsmiter напрямую контролирует самолет.

3. Два вида поддерживаемого способа управления коэффициентом усиления: усиление от радио, независимая ось от переменной

Резистор на плате контроллера.

4. Используя Улучшенный подход, обеспечивает более комфортное и более чувствительное чувство управления.

Упаковка включает в себя:

Плата контроллера полета NX3-1 шт.

1 x NX3 руководство

5 x провода

Двухсторонняя лента-1 шт.
